Working with the S4F Scene code

Note: Being familiar with JSON, basic 3D terms, and RBG colors will help when working with scenes, but here are the basics.

The scene is defined in a JSON-based format called S4F (Steve's Super Simple Scene Format). It is indeed simple for a 3D format -- it only defines a few shape types, positions, rotation, and color. Animation tracks are optional. Positions and rotations are defined with X,Y,Z coordinates, and colors are defined with hex-based strings. For example, 0xff0080 is 100% red, 0% green, and 50% blue (reddish-purple).

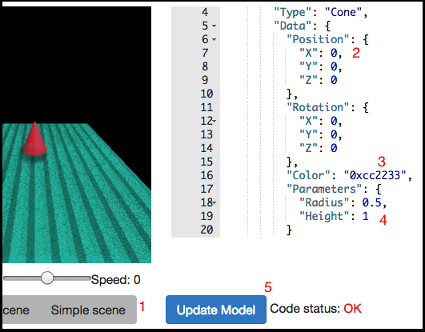

Try these steps on the main page (see screen shot numbed items below)

  1. Click the 'Simple Scene' button
  2. Change the 'X' position from 0 to 1.5
  3. Change the 'Color' parameter from 0xcc2233 to 0x22cc33
  4. Change the 'Height' parameter from 1 to 3
  5. Click the 'Update Model' button

If all went well, you should now have a slightly-off center, taller cone, that is greenish rather than reddish.

Note that the editor will attempt to correct for basic JSON syntax errors, but it's not foolproof. Note that any decimals less than one must start with a leading zero, e.g. 0.5, not .5.

Once you've gotten some practice with this, try looking at the 'General Scene.' Note that the main 'ShapeList' node contains an array (defined by square brackets[]) with comma-separated shape objects. Try creating some boxes, cones, cylinders, planes, or even extrusions. Note that the ''"''Parameters'"' section of the different shape types is different depending on the shape. (A rectangle has a length, width, and depth, while a cone has height and a radius.)

Animations

Try editing some of the points in 3d space in an animation track in the 'AnimationTracks' section of the scene, and click 'Run Animation.' Also try adding, removing, and changing the track assignments of individual objects, e.g. 'AnimationTrack' = 'Track2'

My screen went black! (Error handling)

The JSON parser for the S4F format is very particular. Any syntax error: missing comma, decimal without a leading 0, missing brace, etc... will cause the scene to not compile or render. I try to give some feedback to the user through the 'Code Status' message below the editor, but currently, the parser can only give limited feedback.
